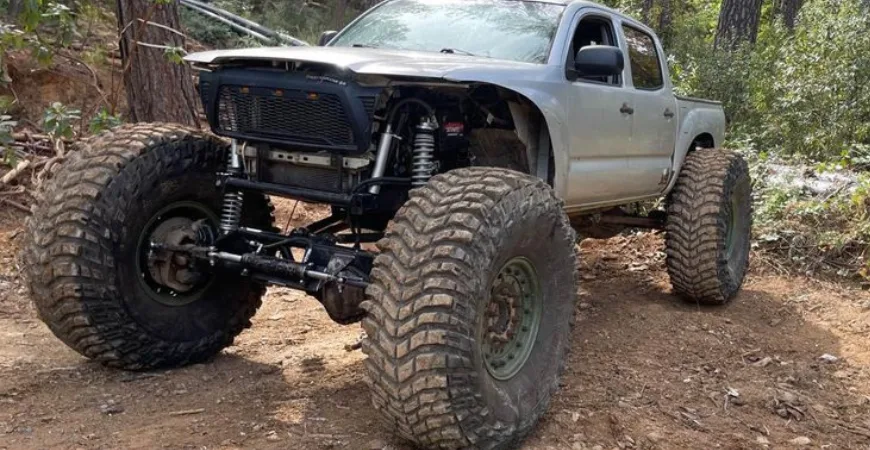

The Toyota Tacoma earned its reputation on reliability — the kind of truck that shrugs off a quarter-million miles and asks for more. Most owners reward that toughness with a mild lift and a set of all-terrains. This one went a very different direction. Underneath a familiar silver double-cab body sits a ground-up rock crawler riding on 54-inch tires and a pair of Ford Super Duty axles, proof that the Tacoma platform can be pushed about as far as imagination and fabrication skill will allow.
A Familiar Face on Unfamiliar Hardware

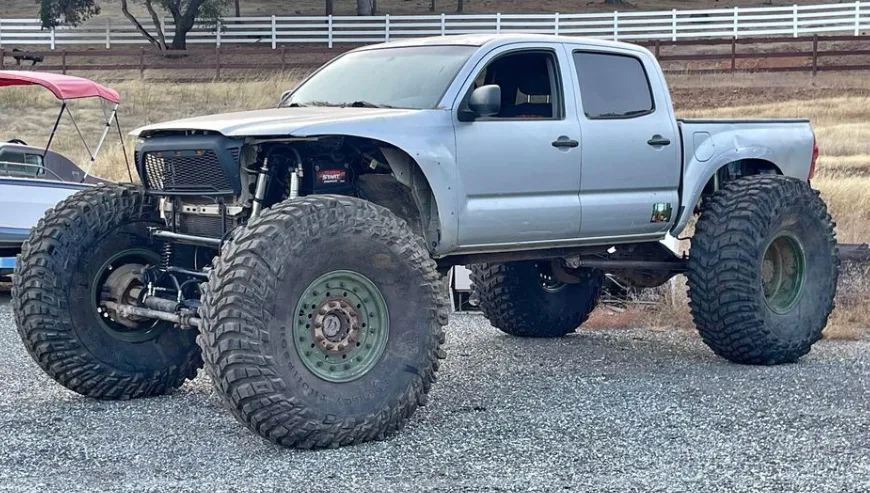

At its core this is a 2006 Toyota Tacoma Double Cab with the five-foot bed — the first year range of the second-generation Tacoma, and a truck enthusiasts still prize for its stout frame, simple mechanicals, and that bulletproof 4.0-liter V6. What sets this example apart is that almost nothing below the sheet metal is still Toyota. The cab and bed have been mounted over a purpose-built crawler chassis, keeping the one thing that makes this build so unusual: four full doors and a back seat. Where most hardcore crawlers are single-cab trucks or tube buggies, this one keeps room for the whole family to come along for the ride.
Drivetrain: Toyota Heart, Ford Muscle
The engine is Toyota’s proven 4.0-liter V6, and it wears its history proudly — the odometer reads 285,000 miles, a figure that says more about this powerplant’s durability than any dyno sheet could. Backing it is a six-speed manual transmission, giving the driver full control over how that torque is delivered on the trail.

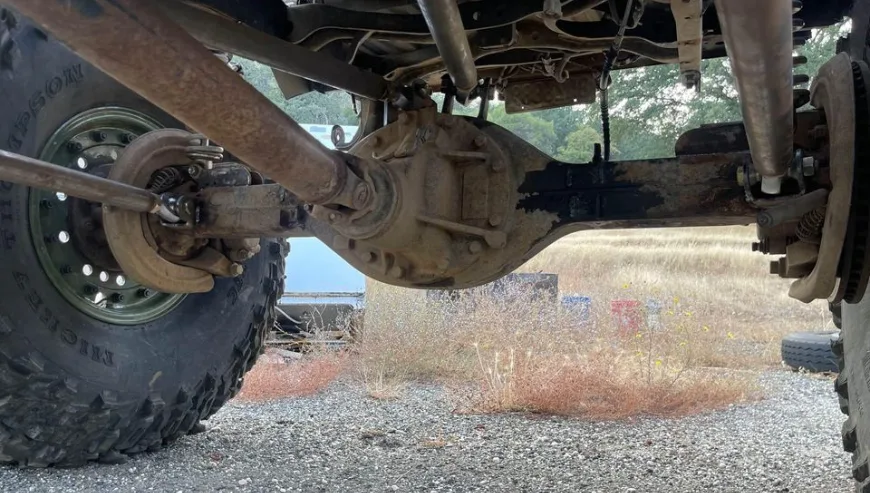

From there, the driveline gets serious. Power runs through a 5:1 Atlas transfer case, an aftermarket gear-driven unit whose deep low range multiplies torque for slow, deliberate crawling over obstacles. The real statement, though, is the axles: both front and rear come from a 2005 Ford F-550, enormous Super Duty units carrying their factory 4.88 gear ratios. These are the massive one-ton-and-up axles Ford puts under its heaviest trucks, and they’re exactly what it takes to reliably turn 54-inch tires without folding under the load. The front differential is welded for full-time traction to both front wheels, while the rear runs a limited-slip (posi) to help put power down. It’s a brute-force approach that trades finesse for the kind of strength that survives real abuse.
Suspension and Steering

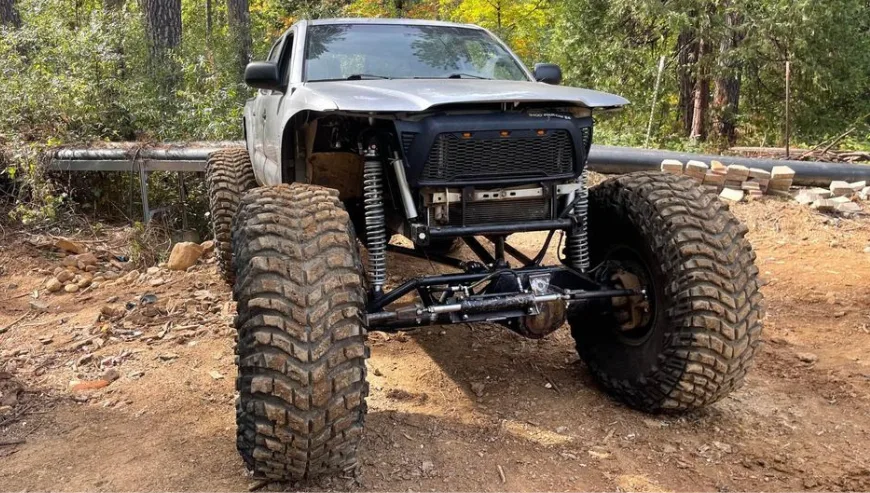

Holding all of that off the ground is a fully linked suspension, front and rear, working with 16 inches of coilover travel at each corner. That’s a huge amount of wheel movement, letting the tires follow the terrain and keep the chassis planted while the body stays relatively level. Steering those enormous front tires is a job stock components could never handle, so the build runs full hydraulic steering — a setup that removes the mechanical link between wheel and axle in favor of a hydraulic ram, delivering the muscle needed to point 54-inch rubber even when it’s wedged in the rocks.
Rolling Stock

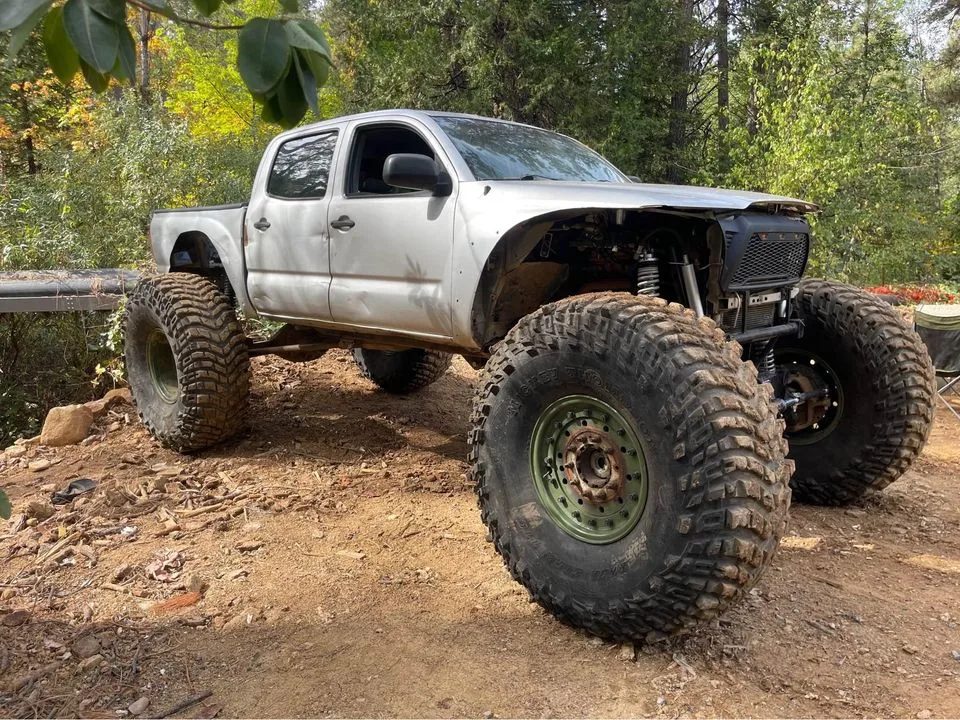

The tires are the headline act: 54-inch Mickey Thompson competition tires mounted on double beadlock wheels. At more than four and a half feet tall, they give the truck its towering stance and the massive contact patch that lets it climb terrain most vehicles can’t approach. The double beadlock design clamps the tire bead from both sides, so the crew can air down to single-digit pressures for maximum grip without risking the tire rolling off the rim under hard articulation. It’s serious competition-grade hardware, and it’s the foundation everything else in the build was sized to support.
The Character of the Build

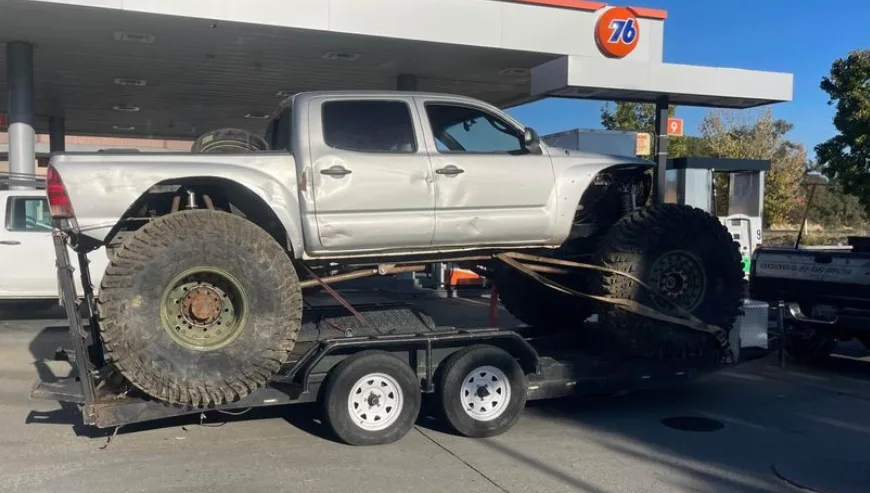

What makes this Tacoma so compelling isn’t any single component — it’s the contradiction it embodies. The tube-front-clipped chassis, F-550 axles, full hydro steering, and 54-inch tires are all uncompromising competition-crawler pieces. Yet they’re wrapped in a four-door family truck body with real back seats and a usable bed. It’s narrow enough to thread the tight, technical trails that would stop a full-size rig, but roomy enough to bring passengers along. Practical enough to trailer to the trailhead, wild enough to conquer it once there. This is a build that refuses to choose between capability and companionship — and that combination is exactly what makes it stand out.
Editorial note: Trading Dirt features notable off-road builds found across publicly accessible for-sale listings and enthusiast directories. We do not broker, sell, or represent any vehicle shown, and no sale information is included. Images remain the property of their respective owners. Owners or photographers who would like to be credited, or to have their content removed may contact us at jason@tradingdirt.com.
